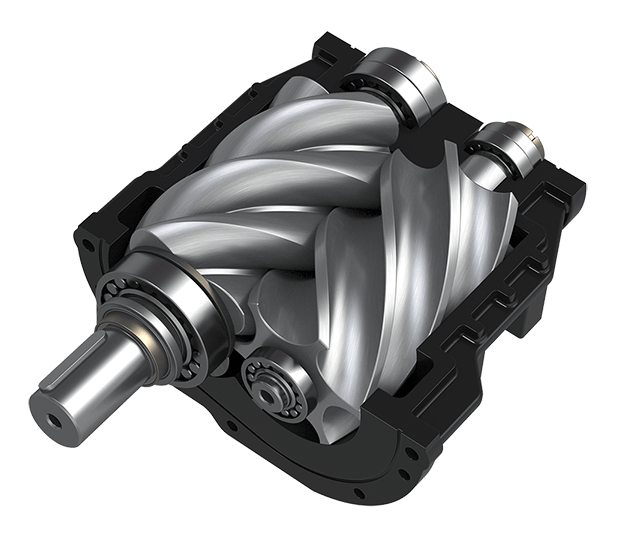

AERZEN VMX SCREW AIR END
Rotor made by Aerzen of Germany, the world class first grade craftsmanship quality and superior industrial materials. There are no surface that contact with the rotor of VMX series, minimum abrasions, smoother operation and more durable.
B300-150HP air compressors of DYNA installed VMX 160 RD rotor, power drive 75-160kW, with flow of 11.5 - 28.3m³/min, powerful and highly efficient. Under severe environmental conditions, it still performs reliably. Temperature applicable are -10°C to 45°C. The top quality choice of air compressor.
Applicable industries : cement, plastics, industrial cereals processing and sewage treatment.
| VMX 160 RD | |
|---|---|
| (m³/min) min - max | P (kW) min - max |
| 11.5 - 28.3 | 75 - 160 |
Aerzener Maschinenfabrik GmbH
DS300-110 Video
Air intake from both compartments
Cooling efficiency being upgraded
Cooling efficiency being upgraded
| Model Number | F.A.D. at Working Pressure | Motor Power | Air Outlet Pipe Dia | Compressor Dimensions | Net Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7kg/cm² | 10kg/cm² | 13kg/cm² | ||||||||||
| m³/min | cfm | m³/min | cfm | m³/min | cfm | kW | HP | inch | L × W × H (mm) | kgs | ||
| B300 | DS300-110 | 20.18 | 700 | 17.0 | 600 | 14.0 | 494 | 110 | 150 | 3 | 2700 × 1550 × 1740 | 2175 |
| DS300-132 | 22.8 | 800 | 18.5 | 635 | 16.0 | 565 | 132 | 175 | 3 | 2950 × 1650 × 1840 | 2445 | |
